How to photograph an HVAC data plate
One sharp photo of the plate, and you never drive back to read a model number again.
By , developer of InspectCam™ · Published · Last updated
Make it safe, wipe the plate, get the light on, then step back a little and zoom in rather than pushing the phone up to it. Tap the model line to focus. Tilt the phone until the bright spot slides off the letters. Take the whole plate, then a close-up of the model and serial, and zoom into the photo before you close the panel. For a stamped metal plate, light it from the side, or rub chalk into the letters and wipe the face clean.
The data plate is the one thing on the job you can’t make up later. The parts counter wants the model number. The warranty desk wants the serial. The office wants both on the invoice. And the plate is always somewhere dark: inside a blower door in a hall closet, on an air handler at the far end of an attic, on the side of a water heater wedged against a wall.
A blurry photo means you reconstruct job details from memory, or drive back. A good one lives in your phone, and you can retrieve the right image weeks or months later when the customer calls about the same unit. This guide is about getting that good one, even when the plate is faded, scratched or stamped into bare metal.
Jump to
What should the photo of the data plate show?

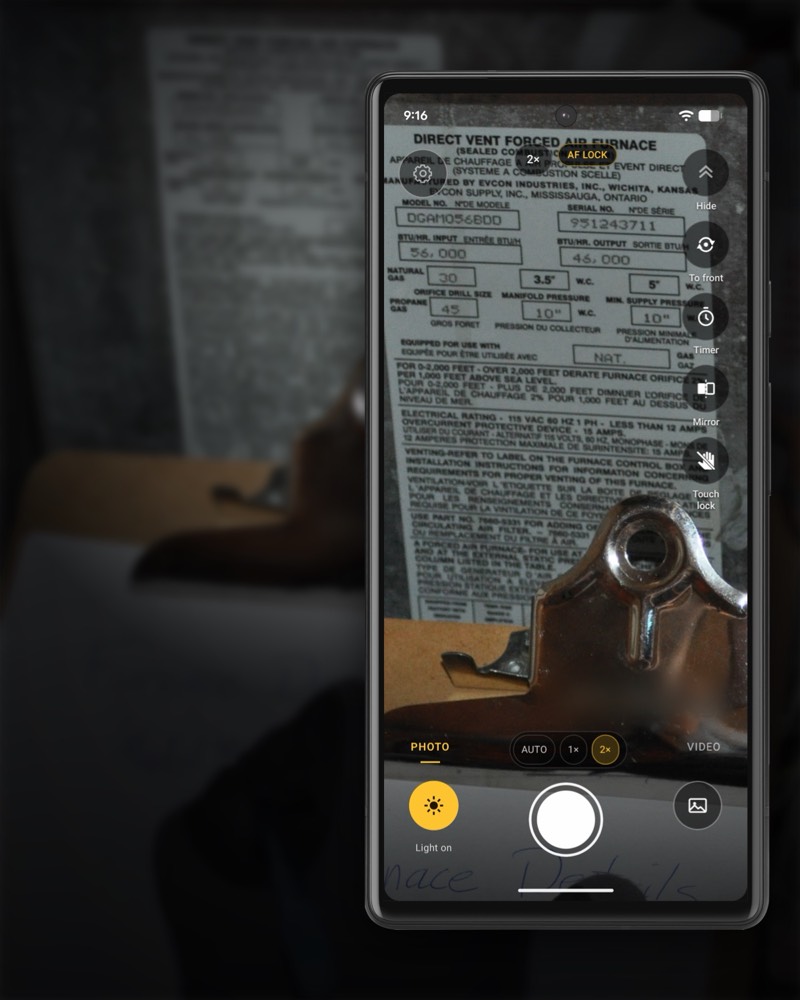

Every letter of the model and serial number, readable without guessing. Look at the plate in the picture above: next to the model and serial it carries the BTU input and output, the gas type, the manifold pressure and the electrical rating, down to the 15-amp overcurrent protection. If a line might matter later, it should be legible in your photo.
Take two shots of every plate:
- The whole plate, square on, edges in the frame. This one proves which unit it came from and catches the lines you didn’t think you needed.
- A close-up of the model and serial lines, filling the frame. This is the one you’ll zoom into at the parts counter.

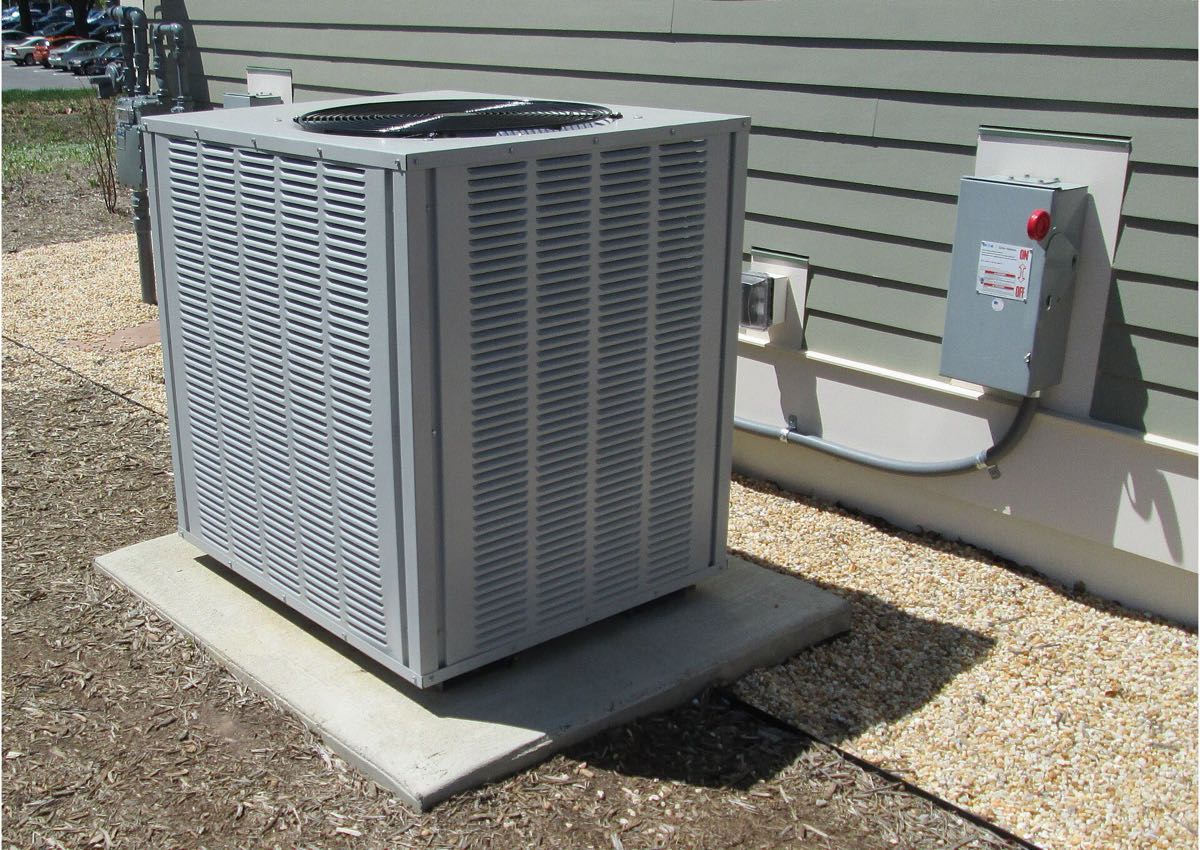

On a split system, shoot both halves. AHRI says that for split systems it certifies the performance of the system, not the individual units, and its directory lists matched indoor and outdoor model numbers together. One plate from the condenser and none from the coil or air handler leaves half the answer in the attic.
Where you’ll be shooting
Every unit puts its plate somewhere awkward, and each spot has its own lighting problem. This is about the light, not a hunt for the label: if you can’t find the plate, the maker’s installation manual usually shows where it is.
| Unit | Where the plate usually is | What fights the photo |
|---|---|---|
| Furnace | On the cabinet, often inside the blower or burner door | Closet or basement dark, tight angles, a door to hold off |
| Air handler | On the cabinet, often a side panel | Attic dark and heat, insulation underfoot, a plate facing the wrong way |
| Condenser or heat pump | On an outside panel of the cabinet | Direct sun on a shiny sticker, weathered print, a plate close to a wall or fence |
| Water heater | On the side of the tank, near the controls | Basement or closet dark, the tank against a wall, warning stickers crowding it |
How do you get a readable photo of a data plate?
- Make it safe first. If the plate is behind a panel, switch the unit off at its service switch before you take the door off, as furnace manuals tell you to. Watch the sheet-metal edges, and keep your hands off flue pipes and the burner area of a unit that was just running.
- Wipe the plate. Dust and cobwebs soften every letter. A dry cloth does it. On a printed sticker, don’t scrub or use solvent: old print comes off with the dirt.
- Get the light on before you aim. A phone in a dark closet guesses at focus and slows the shutter, and both blur small print.
- Step back a little and zoom. Most phones can’t focus a couple of inches away. Hold the phone at a comfortable distance and pinch in, or tap a zoom button, until the plate fills the frame.
- Tap the model line to focus. Tap the smallest print you need, not the middle of the plate, and wait a beat for it to sharpen.
- Tilt off the glare. If a bright spot sits on the letters, tilt the phone a little until it slides off. More on that below.
- Hold still. Rest your wrist on the cabinet or a joist. A self-timer, or the phone’s volume button as the shutter, keeps the tap from shaking the picture.
- Check before you close up. Open the photo and zoom into the serial. If any character could be two things, shoot again now, while the door’s still off.
When you copy the number down, watch the look-alikes: 0 and O, 1 and I, 5 and S, 8 and B. Model numbers mix letters and digits freely, so the photo is your proof when someone types it wrong.
Why is there a bright spot on the data plate?
Because the phone’s light sits right beside the lens. On a glossy sticker or a polished metal plate, light that goes straight in bounces straight back, and you get a white blob exactly where the serial is.
The fix is to come in at a slight angle. Tilt the phone a few degrees up, down or sideways, and watch the screen: the bright spot moves, and the letters under it come back. You only need enough angle to move the reflection, not so much that the far edge of the plate goes soft. Outdoors, it’s the sun doing it: stand so your shadow falls across the plate.
How do you read a faded data plate?
It depends on whether the letters are printed or pressed into the metal.
A printed sticker that has faded
Sun on a condenser and heat in an attic both bleach printed labels. Shade it, light it evenly, and take several shots at slightly different angles; a character that’s gone in one is often there in another. Zoom into each photo afterwards rather than squinting at the plate. If it’s truly gone, check the other plate in the system, the installer’s paperwork, or the AHRI certificate from the install.
Stamped or embossed metal: light it from the side
On older equipment the numbers are often stamped or raised in bare metal. Head-on light flattens stamped letters. Light skimming across the metal makes each one throw a shadow.
Your phone can’t do that on its own, because its light sits beside the lens. Hold a second flashlight low at one edge of the plate, nearly flat, and move it around until the characters stand out. Then take the photo.
The fill-and-wipe trick
For stamped or embossed metal that still won’t read, rub chalk or a light-coloured crayon across the characters, then wipe the flat face with a cloth. The fill stays in the stamped letters and comes off the flat metal, so the number shows light on dark. It’s an old machinists’ and restorers’ trick, and it wipes off when you’re done.
Some techs do the same with a dry-erase marker, whose ink is made to wipe off smooth surfaces. I haven’t found a maker who recommends it, so try it on one corner first. A few rules either way:
- Stamped or embossed metal only. Never a printed sticker: anything you rub or wipe across it takes the print with it.
- No permanent marker, no sandpaper, no wire brush. Abrasives wear shallow stamping away for good.
- Clean it off afterwards, and never change or cover the numbers. The plate is the unit’s identity.
A pencil rubbing
Lay paper over the plate and rub a pencil across it, like a coin rubbing. The stamped characters come up on the paper. Photograph the rubbing next to the plate, so the two stay together.
| Problem | Try |
|---|---|
| Too dark, photo soft | Light on before you aim, step back and zoom, tap to focus on the print |
| White spot on the numbers | Tilt the phone a few degrees; outdoors, shade the plate with your body |
| Printed label faded | Several shots at different angles, zoom in afterwards, check the other plate and the paperwork |
| Stamped metal, hard to read | A second light held low at the side; then chalk or crayon, wiped off the flat face |
| Can’t see the screen at all | Record a short video with the light on and pause it on the plate |
Once you have the serial, the date code tells you how old the unit is, but every maker writes it differently. The Building Intelligence Center keeps serial number age decoders by brand for HVAC equipment and water heaters.
Doing it with InspectCam™
InspectCam™, which I build, is a camera for this kind of spot. Turn the light on once and it stays on while you look, shoot and record. No hunting for the flashlight tile. If you only need the light for a photo, keeping the flash on while taking a picture covers your phone’s own camera too.
- Zoom: pinch, or tap the wide and close presets your phone supports.
- Tap to focus: tap the model line and the focus holds there, with a “Focus locked” badge. Tap again to let go.
- A 3- or 6-second timer and a volume-button shutter, so the shot isn’t shaken by your thumb.
- Touch lock, so a glove brushing the screen in a tight cabinet can’t turn off the light.
- Video for the plate you can’t see the screen in front of: record a few seconds with the light on, then pause on the frame you need.
To save your battery, the light turns off after 10 minutes untouched, with a warning first, or if the phone gets very hot, which an attic in July can manage. Tap the light to turn it back on. Free photos carry a small, faint InspectCam™ mark in one corner.
The plate filed under the job Pro · Coming soon
Photos stuck in text messages and a camera roll full of other jobs are how a serial number goes missing. With Pro, every photo goes into the job it belongs to. Allow location and the camera picks the job you’re standing at, if you’ve taken photos for it there before; where two or more jobs share the spot, the job chip asks “Which job?” until you choose.
Pro’s ready-made HVAC template lists the photos to take: the outdoor unit label, the indoor unit label, the filter, the thermostat, the problem and the work done. It has a field for the equipment model and serial. Mark a label photo required, and the job page keeps it under “Still needed” until you’ve taken it. Photos and videos carry the date and time, plus the address and GPS when you allow location, in one thin line (Dual videos carry no stamp). Reports go out under your company’s name, with a small “Generated with InspectCam” credit. Pro is coming soon; see what’s in Pro. Inspectors can see how it fits a full inspection on the home inspection app page.
Questions people ask
How do I take a clear picture of a furnace data plate?
Switch the furnace off before you take a panel off, wipe the plate, and get a light on before you aim. Step back a little and zoom in instead of pushing the phone close, tap the model line to focus, and tilt the phone until any bright spot slides off the letters. Then open the photo and zoom into the serial before you put the door back.
How do I read a faded or stamped data plate?
For a faded printed sticker, shade it, light it evenly and take several shots at slightly different angles, then zoom into each. For stamped or embossed metal, hold a light low at the side so each letter throws a shadow, or rub chalk or a light crayon over the characters and wipe the flat face clean so the fill stays in the letters. Never rub or use solvent on a printed sticker.
Why does my data plate photo have a white spot on it?
The phone’s light is right next to the lens, so on a glossy or metal plate it reflects straight back into the camera. Tilt the phone a few degrees until the spot moves off the print. Outdoors the sun does the same thing: shade the plate with your body.
How do I photograph a water heater model number?
The rating plate is usually on the side of the tank, near the controls. Light it, take the whole plate first and then a close-up of the model and serial lines, and check the close-up before you leave. If the tank is against a wall, hold the phone where your head won’t fit and read the plate on the screen, or record a short video and pause it.
How can I tell how old a unit is from the data plate?
The serial number usually carries the build date, but every maker codes it differently. Get a sharp photo of the full serial, then look up that brand’s format. The Building Intelligence Center keeps serial number age decoders by brand for HVAC equipment and water heaters.
Do I need both the indoor and outdoor unit plates?
On a split system, yes. AHRI certifies split systems as a matched system, not as separate units, so the indoor and outdoor model numbers are looked up together. Photograph the condenser plate and the coil or air handler plate on the same visit.
